Home » Our Products » Air Washers (Evaporative Cooling Machine)

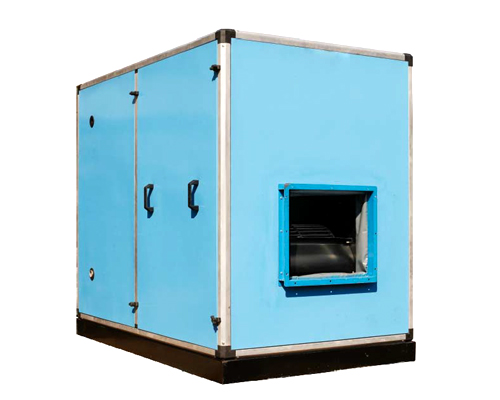

Air Washer Manufacturers

Best Efficiency Guaranteed Performance Timely Delivery
  Competitive Prices
Get Best Quality Air Washer Manufacturers, Air Washer Manufacturers in Noida, Air Washer Suppliers. Evaporative cooler produces effective cooling by combining a natural process water evaporation with a simple reliable air-moving system. Fresh outside air is pulled through moist pads, where it is cooled by evaporation and circulated trough a house or building by blower.

Air Washer Manufacturers in Noida

Innovative Solutions
SUITABLE FOR :
  • Automobile
  • Heavy/Medium Engineering Industries
  • Pharmaceutical
  • Hotels
  • Restaurant
  • Chemical Industries
  • Garment Units
  • Engineering Units
  • Industrial Units

Comparison

Evaporative Air Cooling Air Conditioning
Introduces 100% fresh air Re-cirulates the same stale air
Windows and doors left open. Windows and doors must be shut.
Keeps the air moist, great for allergy and asthmatic conditions. Reduces the moisture, which can be bad for asthma and allergy sufferers.
Full ventilation exhausts odors, germs. Re-circulated air can contain germs and airborne contaminants.
Increased cooling capacity as outside temperature rises. Reduced efficiency and capacity as outside temperature rises.
70% Less than the installation costs of air conditioning. Costly Installation.
90% Less than the running costs ofair conditioning. Higher running costs.

Evaporative Cooler Temperature Drop Chart

PERCENTAGE RELATIVE HUMIDITY
Ambient Dry Bulb Temperature( °C) 10% 20% 30% 40% 50% 60% 70% 80% 90%
10 4.0 4.5 5.5 6.0 7 7.5 8 9 9.5
15 7.5 8.5 9.5 10.5 11 12 13 13.5 14.3
20 11 12 13 14.5 15.5 16.5 17.5 18.5 19.0
25 14.5 16 17 18.5 20 21 22 23 24
30 17.5 19.5 21 22.5 24 25 26.5 28 29
35 20 23 25 26.5 28.5 30 31.5 32.5 34
40 23 26.5 29 31 32.5 34.5 N/A N/A N/A
45 26 29 32.5 35 N/A N/A N/A N/A N/A
50 29 32.5 36.5 N/A N/A N/A N/A N/A N/A

Salient Features Of Single Skin & Double Skin Air Washer

FEATURES SINGLE SKIN DOUBLE SKIN
Corner Cast Iron PVC
Sheet Metal 16 G. G.I. 24 G.I. - P.P. Sheet Outside
24 G.I. Gl Inside
Insulation No Insulation Puf Insulation CFC Free
Base 75/100mm C Channel 75/100 mm C Channel
Tank MS / SS MS / SS
Filter Frame G.I. / Aluminium G. I/Aluminium
Vibration Isolator Cushy Foot Mounting Cushy Foot Mounting
Fan Cenrifugal Fan-Forward
Curved/Backward Curved
Centrifugal Fan-forward
Curved/backward Curved
Cooling Media Cellulose Pad Cellulose Pad
Air Discharge Horizontal/vertical Horizontal/vertical
Air Washer Placement Ceiling Suspended/foot
Mounting
Ceiling Suspended/foot
Mounting

The Cabinet
AIRMAKE Air Washer made in single skin or double skin cabinets/ housing
Features
Base
The total assembly is mounted on a horizontal member of heavy galvanized steel channel with die cast Aluminum Corners for joining them together with lifting holes on all corners.
The Panels
We have special software to desing the panels for standard air Washers, to suit the site conditions for easy assembly.
The Panels are fixed to the rugged frame work made of aluminum section/G.I. section with special imported fasteners/nut surts. The Cabinet is airtight using self adhesive tapes and gaskets. Inspection Windows / Doors
Inspection Windows/Doors
AIRMAKE Air Washers have proper accessibility for regular maintenance through hinged service doors
Cellulose Pad
The Cellulose pads are of imported origin and air designed for maximum saturation efficiencies, being having large [air to surface act area in 7mm flute size and 45x45 flue angle (more detail are labled further in this catalogue.)
Filters
The standard pre-filters are made of G.l./Aluminium construction having efficiency 90% down to 30 micro. )epends on application the fine filters of various efficiencies also can be provided.
Water Tank
The water tank is made of mild steel or stainless steel with anti corrosive coatings (FRP/EPOXY) and are designed for easy access for periodic cleaning.
Pipes & Pipe Fittings
The pipe and other fittings like gate valve, Y-stainers, float valve are of reputed make or of imported origin.
The Fan Motor & Drive Set
AIRM|AKE offers fan in forward and backward curved design, statically and dynamically balanced with low noise levels and high efficiency from 300mmm dia to 2000mm dia.
The fan & motors are mounted on MS channel/G.I. fabricated slide rails with provision of easy belt tensioning. The complete assembly is mounted on spring/rubber vibration isolators for smooth performance. The fan is connected to the main casing, using fire and moisture resistant flexible canvass connection, ensuring low operating noise and vibration.
The drive pulleys are taper bushed duly balanced with propersized 'V belts.
Acessories
AIRMAKE air washer features can be enhanced by using various optional accessories as per below:
Technical Performance / Selection Chart-Single Blower

Side View

Top View


Salient Features Of Single Skin & Double Skin Air Washer

S.NO. CAPACITY C.F.M DIMENSION FAN SIZE ST. PRESSURE RPM- BHP/HP PUMP RANKING
L W H 25 MM 40 MM 50 MM 65 MM
1. 3000 1700 900 1200 315 805 1039 1177 1356 0.25 HP
1.04/1.5 1.63/2 2.08 / 3 2.79 / 3
2. 4000 1800 1200 1200 355 689 886 1017 1209 0.25 HP
1.23/1.5 1.89/2 2.44 / 3 3.5/5
3. 5000 1900 1500 1200 400 627 792 905 1059 0.25 HP
1.53/2.00 2.29 / 3.0 2.93 / 5.0 4.02 / 5.0
4. 6000 1950 1200 1500 450 550 696 792 917 0.25 HP
1.75/2 2.65 / 3 3.39 / 5 4.52 / 5
5. 7000 2050 1500 1500 450 561 692 775 899 0.5 HP
2.24 / 3 3.16/5 3.87 / 5 5.11/7.5
6. 8000 2100 1200 1800 500 527 654 731 844 0.5 HP
2.45 / 3 3.58 / 5 4.41 / 5 5.90 / 7.5
7. 10000 2200 1500 1800 560 462 573 645 747 0.5 HP
2.91 / 5.0 4.24 / 7.5 5.31 / 7.5 7.12/10
8. 11000 2200 1650 1800 560 469 575 641 739 0.5 HP
3.39 / 5 4.79 / 7.5 5.81 / 7.5 7.65/10
9. 12000 2300 1800 1800 630 416 516 577 670 0.5 HP
3.57 / 5 5.30 / 7.5 6.53 / 7.5 8.80/10
10. 13000 2300 2100 1800 630 420 518 576 660 0.5 HP
4.04 / 5 5.85 / 7.5 7.14/10 9.24/10
11. 15000 2450 1800 2100 710 365 456 512 601 1.0 HP
4.24 / 7.5 6.21 / 7.5 7.81/10 10.61/12.5
12. 18000 2500 2250 2100 710 378 459 510 581 1.0 HP
5.82 / 7.5 7.94/10 9.51 /12.5 12.08/15
13. 20000 2700 2400 2100 800 316 394 441 509 1.0 HP
6.06 / 7.5 8.81/10 10.85/15 14.16/20
14. 22000 2700 2250 2400 800 321 398 441 504 1.0 HP
7.14/10 10.1/12-5 12.06/15 15.48/20
15. 25000 2900 2550 2400 900 283 353 396 458 1.0 HP
7.66 / 10 10.99 / 12.5 13.87 / 20 18.51 / 25
16. 27000 2900 2700 2400 900 287 353 395 454 1.0 HP
8.64 / 10 12.16 / 15 14. 80 / 20 19.70 / 25
17. 30000 3000 3000 2400 1000 254 318 359 423 1.0 HP
8.64 / 10 13.02 / 15 16.65 /20 23.30 / 30
18. 35000 3000 3000 2700 1000 260 318 355 408 1.0 HP
11.07 / 15 15.55 / 20 18.99 / 25 25.06 / 30
19. 40000 3000 3300 2850 1000 268 324 357 404 1.0 HP
14.14 / 20 18.97 / 20 22.41 / 25 28.21/ 30
Technical Performance / Selection Chart-Double Blower

Side View

Top View


Technical Details Of Pad Type Air Washer With Double Blower

S.NO. CAPACITY C.F.M DIMENSION FAN SIZE/QTY. STATIC PRESSURE RPM- BHP/HP PUMP MODEL
L W H 25 MM 40 MM 50 MM 65 MM
1. 45000 2700 4500 2400 800/2 321
7.38/10
399
10.46/12.5
441
12.41/15
503
15.86/20
1.0 HP
2. 50000 2900 5100 2400 900/2 283
7.14/10
353
10.12/12.5
396
12.06/15
458
15.48/20
2.0 HP
3. 55000 2900 5400 2400 900/2 288
8.95/10
353
12.49/15
395
15.08/20
453
20.0/25
2.0 HP
4. 60000 3000 6000 2400 1000/2 254
8.64/10
318
13.02/15
359
16.65/20
423
23.30/30
2.0 HP
5. 65000 3000 5700 2700 1000/2 257
9.78/12.5
317
14.16/20
356
17.67/20
414
24.01/30
2.0 HP
6. 70000 3000 6000 2700 1000/2 260
11.07/15
318
15.55/20
355
18.99/25
408
25.06/30
2.0 HP
7. 75000 3000 6000 2850 1000/2 264
12.56/15
321
17.18/20
355
20.56/25
405
26.48/30
2.0 HP
8. 80000 3000 6600 2850 1000/2 268
14.14/20
324
18.97/20
357
22.41/25
405
28.21/30
2.0 HP
Centrifugal Blower

Centrifugal Blower Forward Curved ACFC Series
Sizes Available - from 300mm dia to 1000mm dia.
Air Qty - 1000 CFM to 40000 CFM
Static PressurelOmm WG to 100mm WG

Centrifugal Blower Backward Curved ACBC Series
Sizes Available-from 400mm dia to 1400mm dia.
Air Qty - 2000 CFM to 80000 CFM
Static PressurelOmm WG to 200mm WG


Air Washer Cooling Media CELLULOSE PAD
A part form manufacturing the fans for various applications, AIRMAKE markets the Cellulose Pad, made by various companies in india and abroad and are well established with respect to Poultry, Horticulture (Green House) and Industrial applications.

The Evaporative Cooling Pad (ECP), made of cellulose paper is engineered from cross-sectional, specially treated flute media capable of absorbing and retaining water to provide the maximum cooling efficiencies. The cellulose media is treated with stiffening and wetting agents to provide the cooling without any water carryover. The pads are designed for tropical and subtropical countries, ensures greatest performance during summer seasons.

The Pad media is treated with anti-rot and rigidifying resins. The media is cross-corrugated to maximize the mixing of air and water. Saturation efficiency ranging from 50 to 98%, can be achieved depending upon air velocity and depth of the cooling pad. Air flows horizontally, while the re-circulating water flows vertically, through the pad. The water is collected at bottom of the pad and is re-circulated, again by a pump through the unique gutter system made of G. I. Sheet.

The Cellulose Pad is cross corrugated coated with anti rot, rigidifying & wetting resins. The Pad are made for maximum efficiency, at minimum pressure drop.
Centrifugal Blower



STANDARD SIZES
Height Width Depth
1800 600 200
1200 600 200
900 600 200
600 600 200

To get 300 mm depth (200mm + 100mm)
