Ceiling Suspended AHU (DX Type and Chilled Water Type)

Overview

RANGE: 1000 CFM to 7000 CFM
SALIENT FEATURES: Ceiling Suspended Double / single Skin Air Handling Unit, which has compact structure, elegant outlook, and low noise design. This unit is comprised of modular constructions configured from DIDW centrifugal Fan with single phase motor / three phase motor with direct driven/belt driven for Ease of Installation
Low Profile height
Low Noise Break Out
APPLICATION AREAS: Ceiling Suspended Units are preferred for Air-conditioning at Offices, Hotels, Banquet Halls, and Shopping Malls Etc.

Unit Construction

Airmake air-handling units are based on a self-supporting frame structure. Their modular casing design, with individual compartments comprising various functional assemblies, ensures that each unit matches individual application requirements perfectly.
Although materials may vary with the unit size and application, all AHUs are of a similar construction; namely an outer framework of posts, assembled using knock in corners, into which double skin, insulated enclosure panels are fitted to form a rigid, airtight compartment.
Double skin insulated panels are available in 25mm and 42mm thick with uniform density of 38-42 Kg/m3. Various options are available such as pre-coated color galvanized sheets, plain galvanized sheets, SS304 & SS316 sheets in various thickness for inner & outer skin.
Smaller units can be supplied as a single section, whereas larger units are usually supplied in modular form, split into manageable sections for final assembly (bolting-up) on site.
AHU sections are generally supplied with a sturdy channel base support frame, complete with lifting holes to facilitate crane age.
All internal components, such as the fan and motor assembly, are built in to the unit sections and are provided with access or removable panels, if necessary, to facilitate maintenance and removal.
All forms of component commonly utilized in air handling equipment can be incorporated into the design such as filters, heaters, cooling coil, heating coil, humidifiers, attenuators, air damper etc.

Functional Assemblies

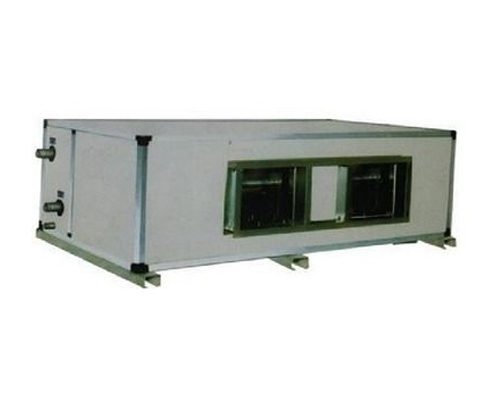

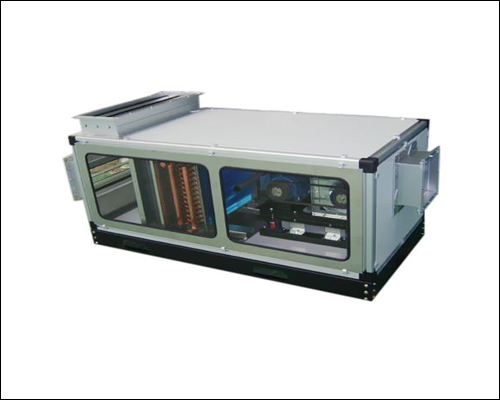

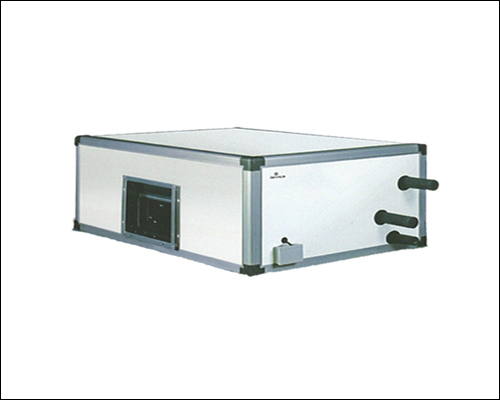

Ceiling Suspended Unit
