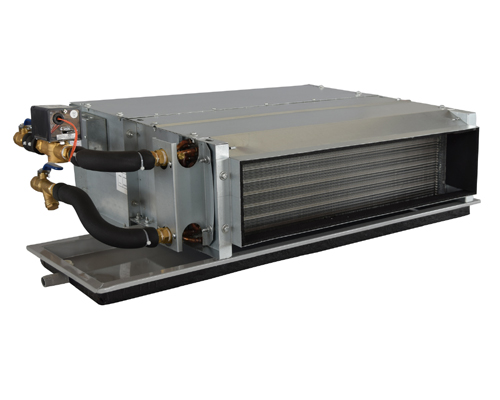

Ceiling Hydraulic Type Fan Coil Unit
- UNIT CASING :- The Unit
with plenum is fabricated of electro-zinc coated steel sheet.
- HYDRONIC COIL :- The 3RD
coil with seamless copper tubes mechanically bonded into aluminium fins.
- FINISH :- Standard FCU
will be in GI finish. Powder coating option is also available.
- BLOWER :- Double inlet,
forward curved centrifugal type, statically & dynamically balanced.
- MOTOR :- 3-Speed
fractional HP motor suitable for 220 V. single phase, 50 Hz A.C. supply.
- FILTERS :- Nylon filters
in Aluminium frame are cleanable type.
- DRAIN PAN :-
- Single piece insulated drain
pan has ribbed construction for faster condensate disposal.
- Drain pan is powder coated
rolex replica to avoid corrosion. Drain Pan is available in GI and
SS in single/sandwich construction.
