Centrifugal Blower Manufacturers

Air Make Cooling System is a brand name in the field of Centrifugal Blower Manufacturers , Centrifugal Blower Suppliers , Centrifugal Blower Manufacturers in Noida

We manufacture two-type centrifugal blower with high pressure - low volume and high volume - low pressure air blowers for range capacity 1000 CFM to 50000 CFM

1) Direct Driven Type

2) Belt Driven Type

Selection Of Centrifugal Air Blowers Specifications

  • Air flow rate required by the process in m3/Hr. or CFM (cubic feet/ min.)
  • Static pressure as offered by the ducting. In inches/ mm of wc.
  • Temperature at which Air enters into the blower.
  • Application for which centrifugal fans & blower is required.
  • Centrifugal Air Blowers Details

  • Blower Wheel Diameter.
  • Rotation speed in rpm.
  • Power Consumption in H.P. or Kw.
  • Motor Power in H.P.
  • Key Construction Features of Blowers

    1) The casing /housing of centrifugal blower will be constructed heavy strength ms materials with multiple stages continuous welding.

    2) Impeller construction will be constructed as desired performance with design and analysis. High Strength materials is selected to provide Impeller hub design in welded / flanges & Bolted / taper lock arrangement / parallel bore / taper machined bore types.

    3) Shaft will be done machining done with accuracy and tolerances maintained as per ISO Std.

    4) Bearing selection is based on speed, type of drive, operational loads, temperature, types of application and trouble free operation for future maintenance requirements.

    5) Motors selection is based on starting speed/RPM according to direct driven and belt driven blowers with marginal operating duty point and efficiency. Motor should be alignment system with AVM pads and pulley belt and shaft. Couplings selected depending on the type of loads, torque requirement, maintenance setup at customer site.

    6) Direct driven /Belt driven blower can be construction designed for very high operating temperature up to 500 Deg C

    7) Impeller will be done statically & dynamic balanced on CNC Machines as per standard.

    8) Number of Accessory options is available according to customer applications like guards, covers, heat sinks, dampers, metallic & flexible bellows / connectors, drains, inspection spouts, gaskets, monitoring instrumentation, bird screens, louver, inlet filters, anti vibration mounts, matching flanges, specific painted etc.

    9) We offer complete range of centrifugal fan / Blower sizes & Impeller designs meet to all Industrial air movement requirements. Our priority is based on our engineering, product range, quality assurance & guaranteed after sale service with technical support.

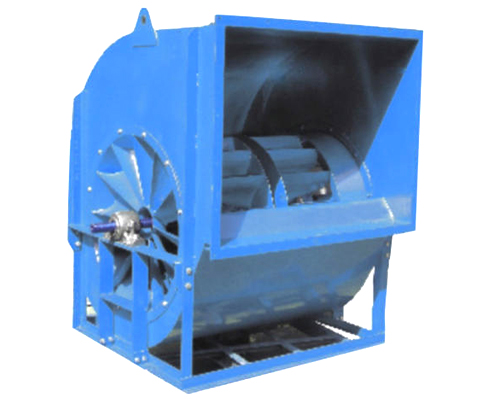

    Double Inlet Forward Curved Centrifugal Blower
    The AMFC series Centrifugal Blower (Forward Curved / Backward Curved) consist of Double Inlet Double Width (DIDW) centrifugal fans.These fans have forward curved impellers with forward curved blades having special profile to give you maximum efficiency at low noise levels. These impellers are statically and dynamically balanced. The fans are suitable for various applications, where high volume air displacement is required like Air Cooling, General Ventilation, Pressurization etc., in commercial process and industrial HVAC (Heat Ventilation and Air Conditioning) systems.
    Centrifugal Blower Manufacturers


    Backward Curved Centrifugal Blower
    The AMBC series Centrifugal Blower (Backward Curved) consist of Double Inlet Double Width (DIDW) centrifugal fans.These fans have Backward curved impellers with Backward curved blades having special profile to give you maximum efficiency at low noise levels. These impellers are statically and dynamically balanced. The fans are suitable for various applications, where high volume air displacement is required like Air Cooling, General Ventilation, Pressurization etc., in commercial process and industrial HVAC (Heat Ventilation and Air Conditioning) systems.
    Centrifugal Blower Manufacturers
    Blower Application
    Centrifugal Blower are widely used for Air Washer, Ventilation/Exhaust Systems,Air Handling Unit, Clean Rooms, Journal Exhaust.
    Industries
    These Blowers are widely used in industries Auto Mobiles, Air Conditioning, Power & Cement Industries, Food & Agriculture, Minerals/Ore, Pharmaceutical, Fertilizers & Chemicals, Glass/Bulb/Lighting.
    For More Details Of Blower And Axial
