Fan Coil Unit

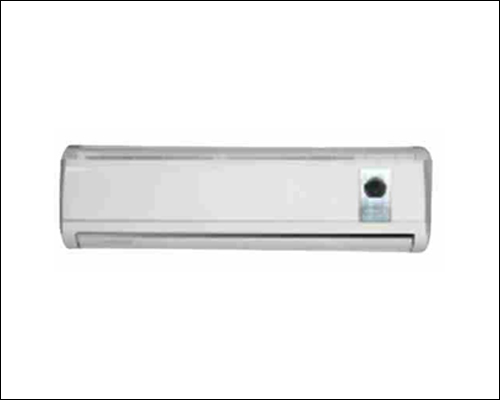

Hi-Wall Hydraulic Type Fan Coil Unit
  • Panel color white as standard.
  • Multi-function LED display.
  • 3 Speed Control.
  • With or Without 3-way electromagnetic valve.
  • Multi pipe connection directions to meet varies installation rooms.
  • LCD display on remote control.
  • Air cleaning devices and high efficiency filter keep the air clean.



Description/ModelAMCS-HW-400 AMCS-HW-600AMCS-HW-800
Air Volume CFM(High/Med/Low speed)450/395/360565/479/452 700/580/355
Nominal Cooling Capacity (BTU/HR)12000 (BTU/HR)18000 (BTU/HR) 24000 (BTU/HR)
No. of Rows2 22
Rated Input Watt62 6584
Rated Current (Amps)0.2 0.20.29
Water flow volume (L/hr) 525806 1060
Water pressure drop (kPa) 3115 20
Inlet/outlet pipe (inch) 1/2"5/8" 5/8"
Condensate drain connection 5/8"5/8" 5/8"
Noise level at 3 speeds (dBA) 50/46/4350/47/4555/52/46
Unit Weight (kg)12.5 16.514.2
Gross Weight (kg)14.5 18.217.3
Net dimension (WxHxD) (mm) 1070*300*2401131*361*214 1080*330*245
Packing dimension (WxHxD) (mm) 1145*385*3001200*275*430 1170*405*325

Notes:
